MOTOR DATA

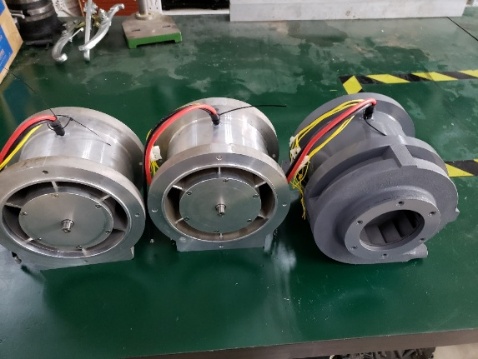

OD080N008S
Compact motors · Source product data and configuration requirements.
APPLICATIONS LISTED IN SOURCE
Electric cooling fans and booster fans.
Application references describe the source material. They do not establish certification or suitability for a particular vehicle, aircraft or installation.
Technical data
| Parameter | Source specification |
|---|---|
| Rotor / assembly type | Inner rotor |
| Rated speed | 6000~15000 rpm |
| Peak speed | Not stated |
| Rated torque | Not stated |
| Peak torque | 4 N·m (below 6 N·m stated) |
| Continuous power | 4 kW (below 6 kW stated) |
| Maximum power | 8 kW |
| Mass | 2 kg (motor + controller) |
| Cooling | Air cooling |
| Ingress protection | Custom |
| Voltage | Custom |
| Applications in source | Electric cooling fans and booster fans. |
| Source notes | Sensorless control with fully integrated controller. |
SOURCE · Shanghai Haoping company presentation 0330 · Slide 38. Presentation data, subject to confirmation for the proposed configuration.
The source lists 4 kW (below 6 kW) and 4 N·m (below 6 N·m), without identifying the variant or operating conditions. Retained as written; configuration requires confirmation.
“Not stated” means the source does not provide a value. “Custom” is the source designation, not a standard rating. Peak values are not continuous ratings.
NEXT STEP
Confirm the exact
operating point.
Include voltage, duty cycle, cooling conditions, mechanical interfaces and the proposed controller. Request the current model data sheet and dimension drawing.
