MOTORS & DRIVE SYSTEMS
Permanent-magnet motors.
Model-level detail.
Explore permanent-magnet motors, starter-generators and drive assemblies. Compare model specifications and discuss your required configuration with our sales team.
PRODUCT RANGE
Compact power.
Application-specific design.
The source portfolio centres on permanent-magnet synchronous technology. Use the model data to begin a technical discussion, then confirm the selected configuration and duty.
| Product range | Reference specifications |
|---|---|
| Motor technology | Permanent-magnet synchronous motors (PMSM), with starter-generator and drive assemblies. |
| Continuous output in named motor records | 300 W to 200 kW; the brochure’s broader range statement reaches 250 kW, which is also a listed maximum power. |
| Speed examples | 600 to 15,000 rpm nominal / listed speed ranges across motor records; 25,000 rpm peak on OD080N025S. RV modules list 20 rpm output. |
| Construction and supply | Air, natural and water cooling options; voltage and IP rating depend on model. Many fields are custom. |
The source decks contain several conflicting model names and ratings. Affected records are marked for clarification. Published values are reference specifications. Confirm the model configuration and any noted differences with our sales team before ordering.
27 product records
Compact motors
OD080N008S
4 kW (below 6 kW stated) continuous
6000~15000 rpm · 2 kg (motor + controller)
High-speed motors
OD080N025S
12 kW continuous
12000 rpm · 3.7 kg (standard version)/4.0 kg (water-cooled version)
Geared & drive units

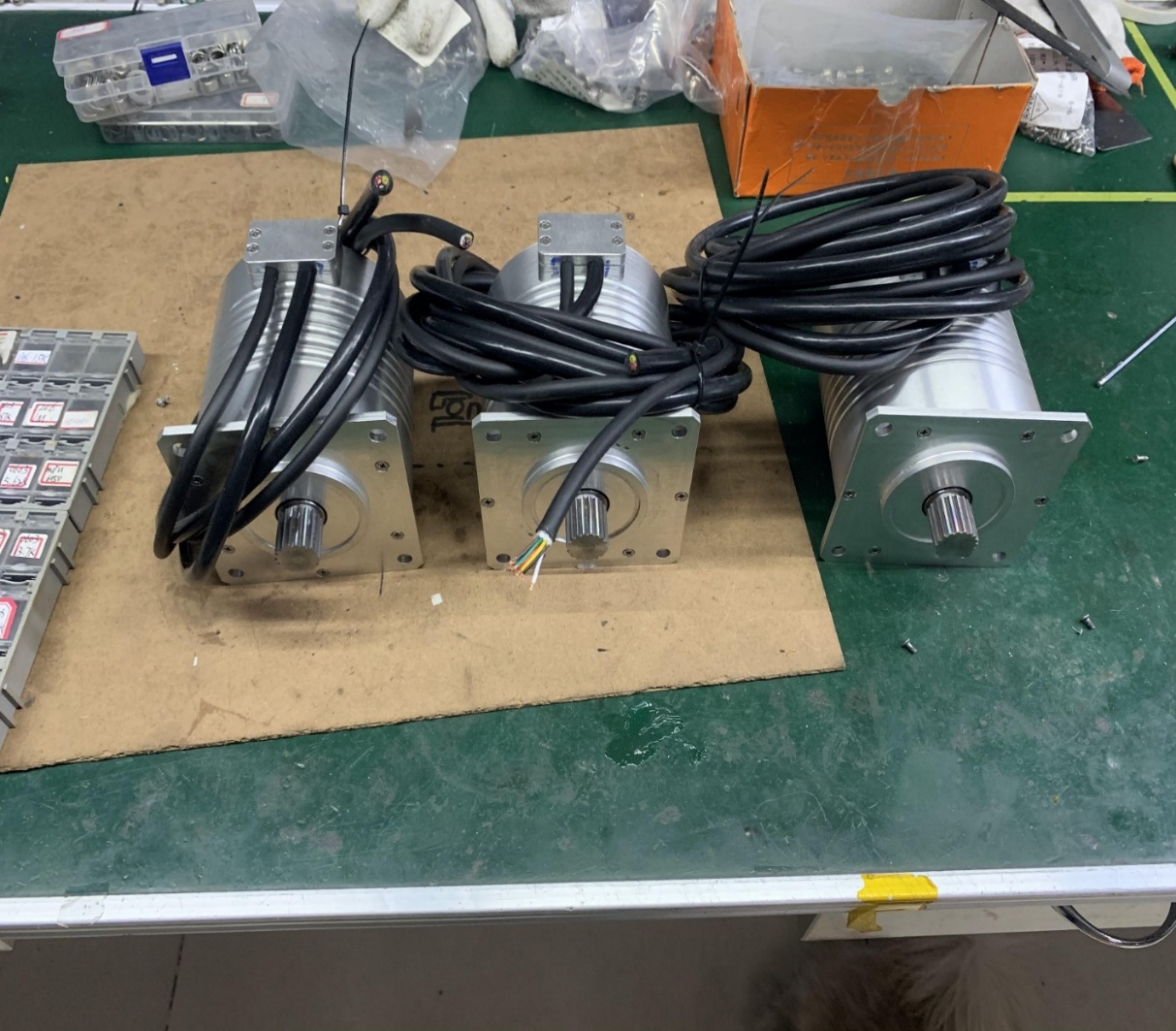

OD090N002SG
1.2 kW continuous
600 rpm · 2 kg (including gearbox and parking brake)
Servo & actuator motors
OD095N015S
12 kW continuous
3000 rpm · 4.9 kg
Compact motors
OD100N002S
2 kW continuous
10000 rpm · 1.5 kg
Compact motors
OD100N004S
4 kW continuous
10000 rpm · 2.1 kg
Compact motors
OD100W004S
4 kW continuous
7000 rpm · 1.8 kg
Servo & actuator motors

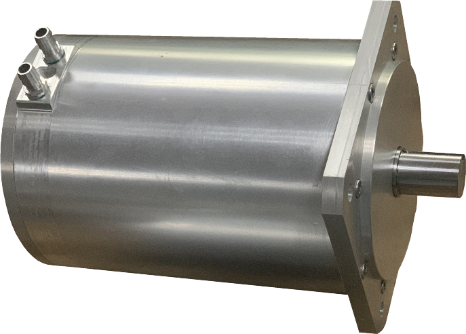

OD114N030G
30 kW continuous
3000 rpm · 10.3 kg
High-power motors

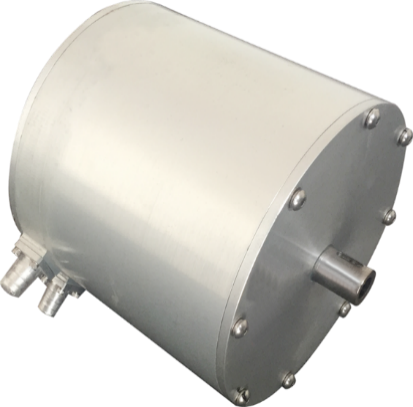

OD148N028S / OD148N035S
28 kW/35 kW continuous
7000 rpm · 9.4 kg/13.2 kg
Starter-generators

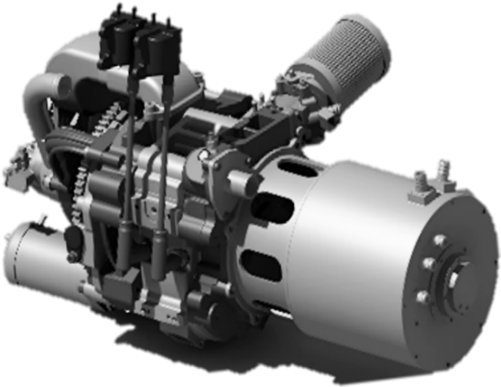

ISG164N035S
37 kW continuous
7000 rpm · 13.2 kg
Starter-generators

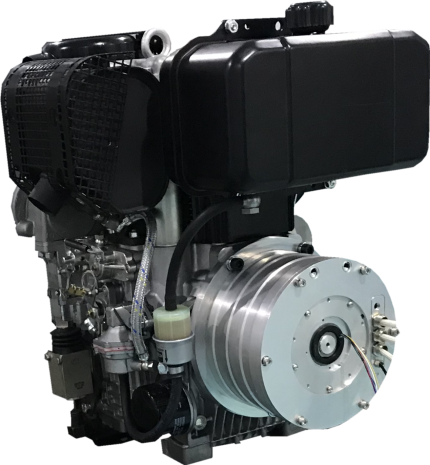

OD180N020SG
20 kW continuous
3000 rpm · 18 kg (including controller)
High-power motors

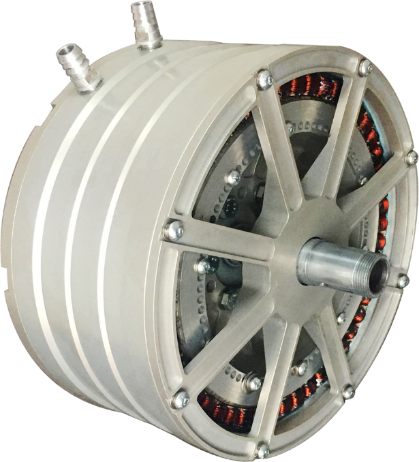

OD240N100S
50 kW continuous
2500 rpm · 15.2 kg
Starter-generators

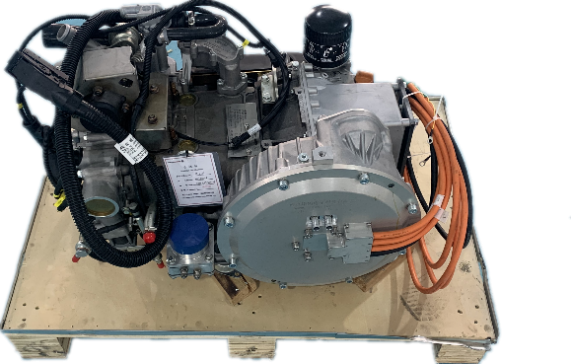

OD266W065S
35 kW continuous
3000 rpm · 18 kg
High-power motors

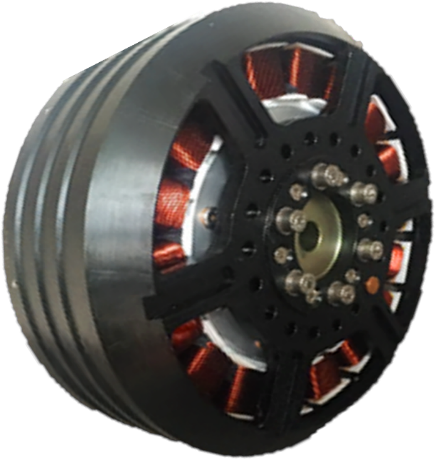

OD266W090S
50 kW continuous
2500 rpm · 18.3 kg
High-power motors

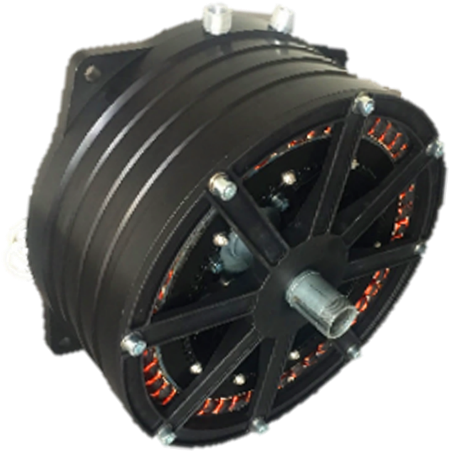

OD300N150S
120 kW continuous
2500 rpm · 31 kg
High-power motors

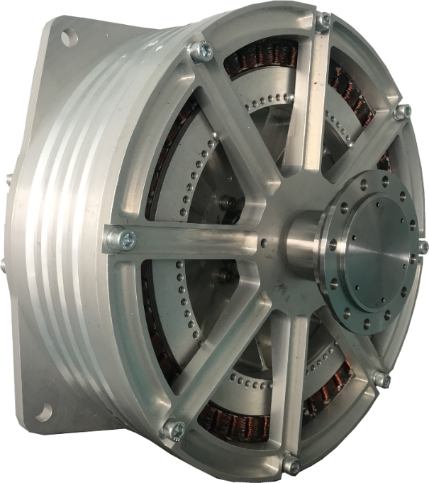

OD380N250S
200 kW continuous
2500 rpm · 52 kg
Geared & drive units
OD240N040SG
20 kW continuous
700 rpm · 48 kg (including wheel rim)
Geared & drive units

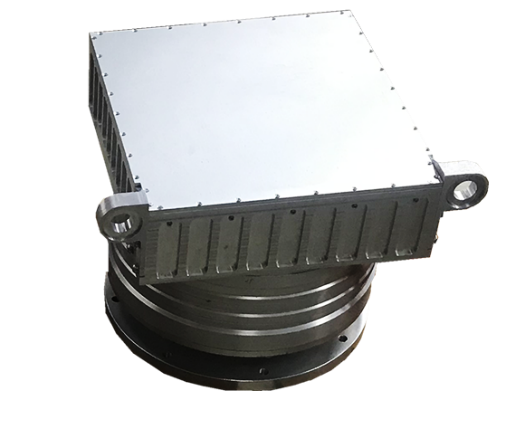

OD240N060SCBP
50 kW continuous
1600 rpm · 28 kg (including controller)
Geared & drive units

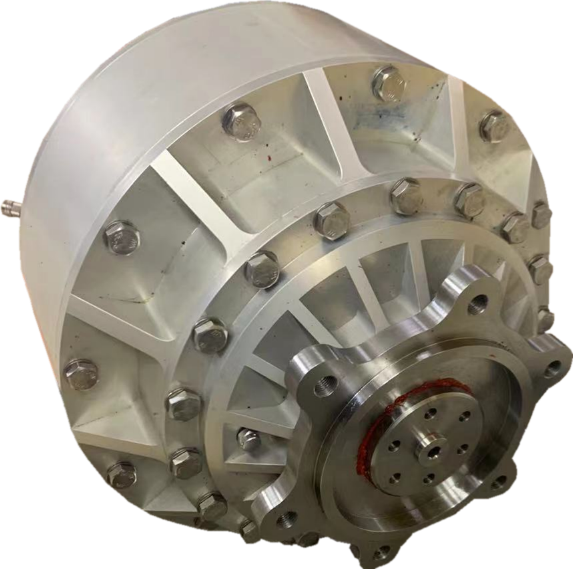

OD380N110SCP
65 kW continuous
260 rpm · 65 kg (including service and parking brakes)
Geared & drive units

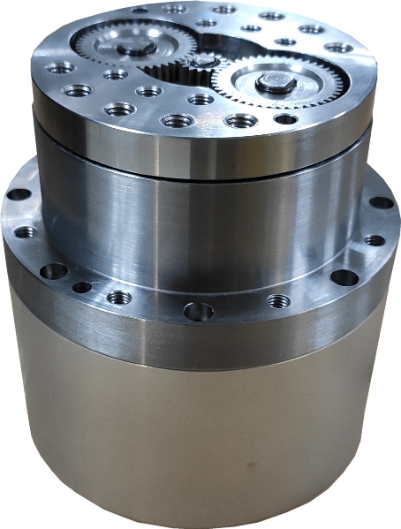

RVOD090N01RG120
20 rpm · 2.7 kg including parking brake
View model dataGeared & drive units
RVOD122N01RG170
20 rpm · Not stated
Source clarification neededView model dataGeared & drive units
RVOD140N01RG180
20 rpm · Not stated
Source clarification neededView model dataGeared & drive units
RVOD160N01RG200
20 rpm · Not stated
Source clarification neededView model dataGeared & drive units
OD090N01SG
1.2 kW continuous
600 rpm · 2.0 kg including gearbox
High-power motors
OD164N035S
35 kW continuous
7000 rpm · 13.2 kg
Geared & drive units
OD180N010SB
6 kW continuous
3000 rpm · 5 kg including parking brake
